Shelta

the thread option

Download

Tapered morphology

The Shelta implant present a marked tapered morphology, which makes these systems particularly suitable in the case of reduced inter-radicular spaces. The thread of the Shelta SL implants also gives great primary stability in the post-extraction surgery and in the case of little compact bone. The rounded apex makes these systems ideal for sinus lift procedures.

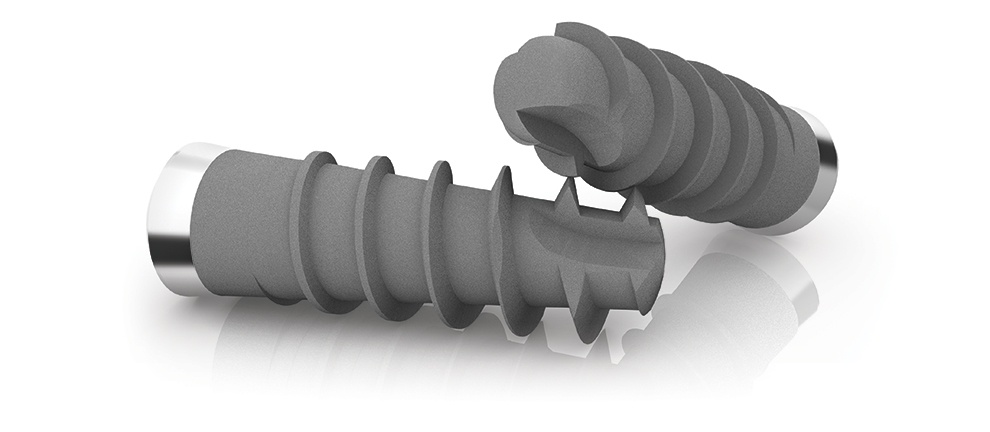

Two options for the thread

The Shelta implant is available in two versions: the standard one, with the body and thread which have conical morphology entirely, and in the version called "SL" (Large Thread), which binds to a tapered implant body a cylindrical outer profile of the threads, constant along the entire length of the implant.

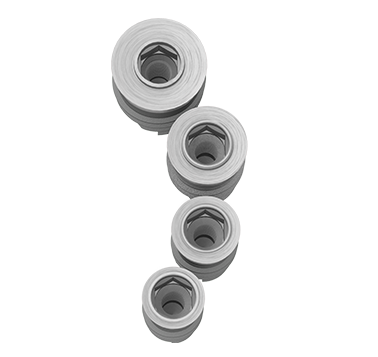

Four different diameters, same COLLEX connection

The Shelta implants have an only internal hexagon connection with a diameter of 3.80 mm, which is the same independently from the diameter of the implant platform. On the other hand, the available implant diameters are four: 3.80 mm, 4.25 mm, 5.00 mm and 6.00 mm.

VIDEOS

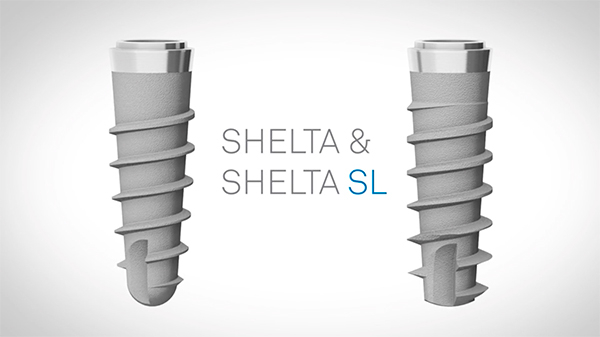

Shelta & Shelta SL

Shelta & Shelta SL

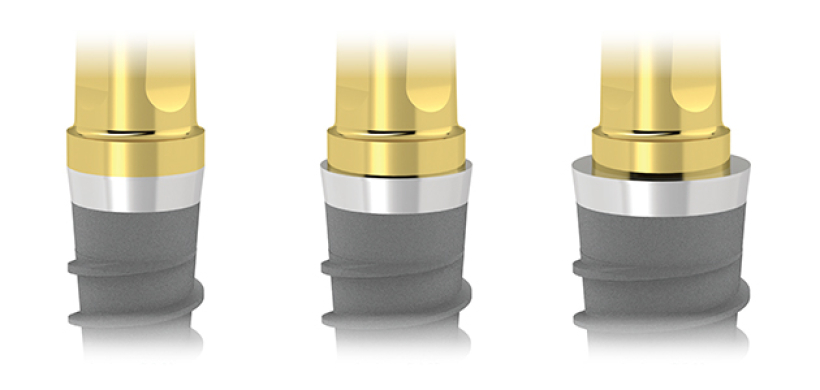

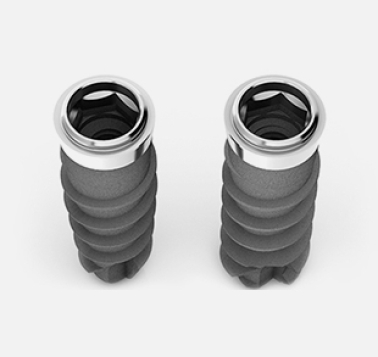

Application of Switching Platform protocols

All the Shelta implants feature a unique hexagon connection, with a small external collar for the support of the prosthesis. This allows the application of Switching Platform protocols , by using posts with a smaller diameter so as to create a mismatching, able to limit the proliferation of bacteria at the implant/abutment junction, and the consequent possible bone resorption.

ZirTi surface

The numerous studies on the surfaces conducted by Sweden & Martina have led to the development of the surface ZirTi, a substrate obtained by subtraction of the latest generation through a sandblasting with zirconium oxide and etching with mineral acids. In addition to increasing the surface of bone-implant contact, the surface ZirTi has been shown to promote the proliferation and cell differentiation during the process of neo-osteogenesis and to stimulate angiogenesis at a distance.

Simple and immediate surgical kit

The surgical kit for Shelta has been designed to offer ease of use and immediacy in the sequence of the instruments. The descriptions of the instruments on the tray and screen printed signs that recall the color codes for the different implant diameters make the use of this kit is easy and intuitive.

Some products may not be regulatory cleared/released for sale in all markets.Please contact the local Sweden & Martina or distributor sales office for current products availability.

Related scientific publications

Canullo L., Cicchese P., Marinotti F., Sisti A.

STRATEGIA PROTESICA MINIMAMENTE INVASIVA NEGLI IMPIANTI POST-EXTRACTION: POSIZIONAMENTO E AVVITAMENTO IMMEDIATO DEL MONCONE DEFINITIVO PER PROTESI SU IMPIANTI SECONDO IL CONCETTO DEL PLATFORM SWITCHING

Il Dentista Moderno, 2011, Dicembre: 46-54

A series of 15 clinical cases with 15 single Premium Kohno post-extraction implants in 15 patients, rehabilitated with Platform Switching,...

Lumetti S., Di Blasio A., Manfredi E., Ghiacci G., Toffoli A., Bonanini M., Macaluso G.M., Galli C.

IMPLANT SURFACE MICROTOPOGRAPHY AFFECTS CELL THE PATTERN OF CELL GROWTH, CELL-TO-CELL CONTACTS AND THE EXPRESSION OF CONNEXIN 43

Clinical Oral Implant Research, 2014; 25 Suppl 10:222

This study reports the preliminary in vitro results of the osteoblastic function of Connexin Cx43 on 4 different surfaces, one with a...

Morra M., Cassinelli C., Crespi R., Covani U.

VALUTAZIONE IN VITRO DI UNA NUOVA SUPERFICIE IMPLANTARE CON MORFOLOGIA NANO-STRUTTURATA

Il Circolo, Rivista Periodica di Odontostomatologia, 1: 27-34, 2004

The complex surface morphology of nanostructured surfaces causes significant platelet activation, if compared to a smooth surface....

Elezi E., Galli C., Passeri G., Lumetti S., Manfredi E., Bonanini M., Macaluso G.M.

HUMAN OSTEOBLASTS BEHAVIOR ON DIFFERENTLY TREATED TITANIUM SURFACES

IADR General Session & Exhibition - Abstract Collection, 2007

The Sweden & Martina surfaces adequately promote cell growth and differentiation.
